High-Grade Stud Bolts for Industries
In the Petrochemical and oil and gas industry for flange associations Stud Bolts and Hex Bolts are utilized. The Stud Bolt is a threaded rod with 2 heavy hexagon nuts, while the Hex Bolt has a head with one nut. The nuts and head are both six-sided. A stud is only a piece of strung bar. This frequently looks like a machine screw without a head, albeit a few studs have heads that get forever integrated into the part they are connected to. Studs are frequently intended to be forever joined to one section, demonstrating a method for connecting one more part in conjunction with a nut. This kind of stud might be welded, swaged, or bonded to connect it and May, hence, have a little head to empower this.
Different studs might have threads at the two finishes. At times, these are both planned to acknowledge nuts — such a stud is known as a stud bolt. On the other hand, a stud might have a self-taping string toward one side, expected to be for all time screwed into a section, and a machine string at the opposite finish to accept a nut.
Market Analysis of Stud Bolts
The worldwide bolts market size is esteemed at USD 39.3 billion in 2018 and is supposed to develop at a build annual development rate (CAGR) of 3.8%. The rising reception of computerized bolt affixing frameworks combined with the developing penetration of carbon and amalgam bolts in different application ventures is supposed to reinforce the market development over the conjecture period.
The market has been seeing broad mechanical advancements in the creation of lightweight bolts for automotive and industrial applications, as would be considered normal to build their application scope. The market has likewise displayed patterns of obtaining high-quality materials and creating basic plans and designs that are convenient to gather.
The material utilized in the dual-ended stud bolt is characterized as far as ASTM, ASME, DIN, ISO, JIS, or some other global standard that shows the grade. We give every one of the normal grades of stud bolts expected according to application.
Quality of Stud Bolts
Stud bolts are categorized into three groups on basis of their material strength:
High Strength stud bolt.
Intermediate-strength stud bolt.
Low-strength stud bolt.
On basis of the application, stud bolts use a scope of screw string profiles. Coming up next are probably the most famous thread profiles:
ISO metric thread
ACME thread
UNC thread
UNF thread
UN thread
WHITWORTH thread

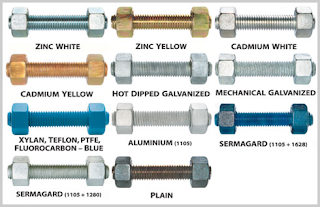

To keep away from galvanic corrosion, the material of the nut and washer should be appropriate for the stud-bolt material. To further develop corrosion resistance, stud bolts are in some cases coated. Some of the common coating materials include:
Electro zinc plating
Electro cadmium plating
Hot dip galvanizing
PTFE Coating
Phosphate coating
Electroless nickel plating
Zinc-nickel coating
Aluminum coating
Silver coating
Zinc/Nickel by electrode position
Dacromet
Geomet
XYLAN 1070
XYLAN 1024
Xylar 1
The length of a stud bolt is the all-out length through and through and from the principal string where the first string is the intersection of the significant width of the string with the foundation of the point. The length is estimated in inches or millimeters. The length of the stud can be estimated either as generally speaking length (i.e., "OAL") or as "first useable string to first useable string" (i.e., "FTF"). The FTF length is the standard stud length estimation for piping applications, and it is gotten by deducting a fourth of an inch from the OAL length. Flanges of different diameters and evaluations require studs of different lengths and diameters.
Material and Dimension of Stud Bolts
Dimensions from Stud Bolts are characterized by the ASME B16.5 standard. The material characteristics for studs are characterized by the different ASTM standards and are shown by Grade. As often as possible utilized grades are A193 for string poles and A194 for the nuts.
ASTM A193: This covers alloy and stainless-steel bolting material for pressure vessels, Valves, flanges, and fittings for high temperature or high-pressure service, or other special applications.
ASTM A194: This covers a variety of carbon, alloy, martensitic, and austenitic stainless-steel nuts. These nuts are planned for high-pressure or high-temperature services or both.
ASTM A320: This covers alloy steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for low-temperature service.
The size and dimensions of the stud are not entirely set in stone by the regulatory standards ASME B16.5 and ASME B16.47, which determine the bolt width and number of bolts required in light of the pressure class, flange type, and pipe size.
Generally, as the pressure class and NPS increment, so does the bolt region. The bolt is not set in stone by two boundaries: the bolt width and the number of bolts. Thus, any of the two or the two boundaries can be acclimated to build the bolt area.
People Also Read:
Outlook
Industrial fasteners can be called stud bolts or — obviously — plain bolts. A stud bolt is a mechanical clasp with an outside string. A stud bolt association is regularly made by two nuts and the stud. Washers and additional nuts might be utilized sometimes. Stud bolts are generally used in high-pressure pipework and pipeline flange connectors.
